Radium Honda K Series Fuel Rail K20 K24

RADIUM Engineering Fuel Rail, Honda K-Series 20-0230-02
PORTS AND FITTINGS
The fuel rail ports are tapped for 8AN ORB.

You can find the below fitting separately.
8AN ORB Adapter Fittings
8AN ORB Direct Mount Regulators.
8AN ORB Fuel Pulse Dampers
Fuel Pressure Gauge Adapters

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

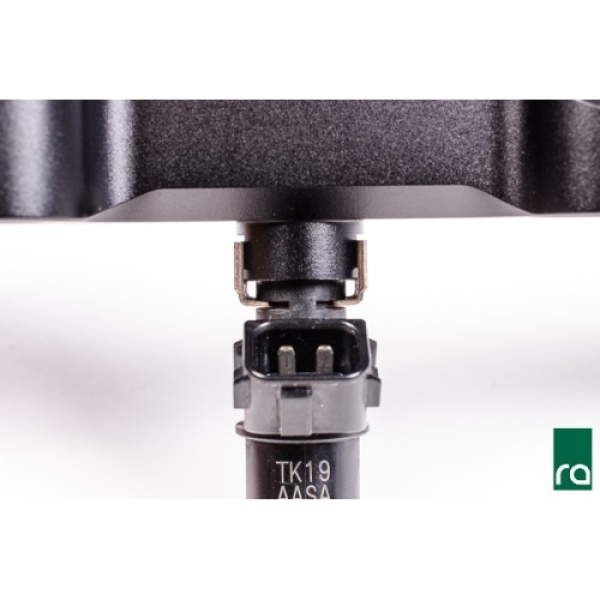

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. If purchased after July 2017, there is a provision to reuse the OEM injector clips (shown below).

This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The OEM insulating spacers (Honda P/N: 16638-PNA-000) are reused and phenolic washers are included to thermally insulate the fuel rail from the aluminum intake manifold.

CONFIGURATION

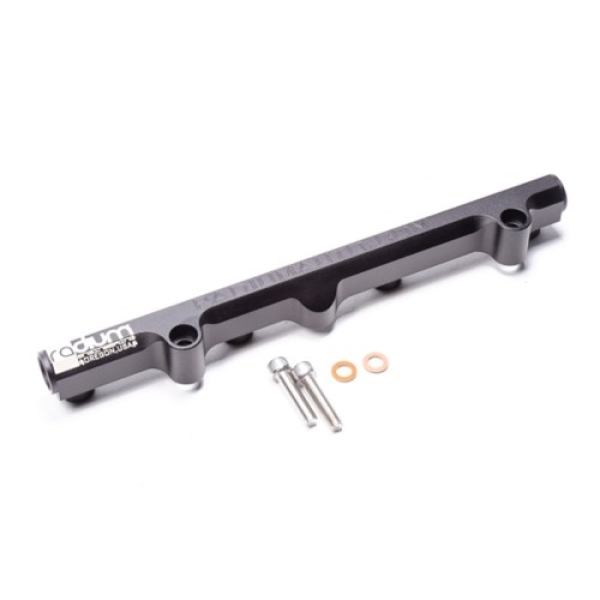

20-0230-02 Fuel Rail, Honda K-Series
This part only includes the fuel rail and the mounting hardware making it ideal for custom fuel plumbing applications. If using the stock fuel feed line, select the plumbing kit shown below.
Included:
-Black Anodized Laser Etched Aluminium Fuel Rail
-Stainless Steel Mounting Hardware
-Phenolic Thermal Insulating Washers

This option is the fuel rail only drop down option. If you need the plumbing kit select Fuel Rail + Fuel Rail Plumbing kit. See the details below-

20-0230-PK Fuel Rail Plumbing Kit, Honda K-Series

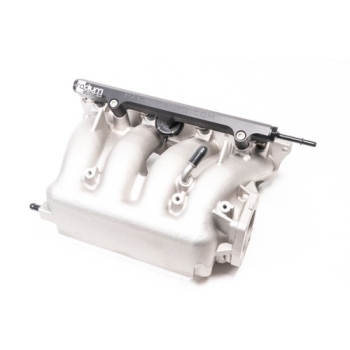

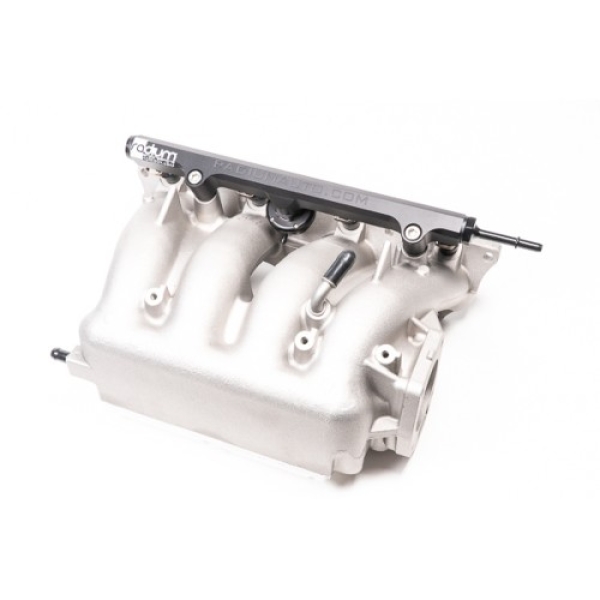

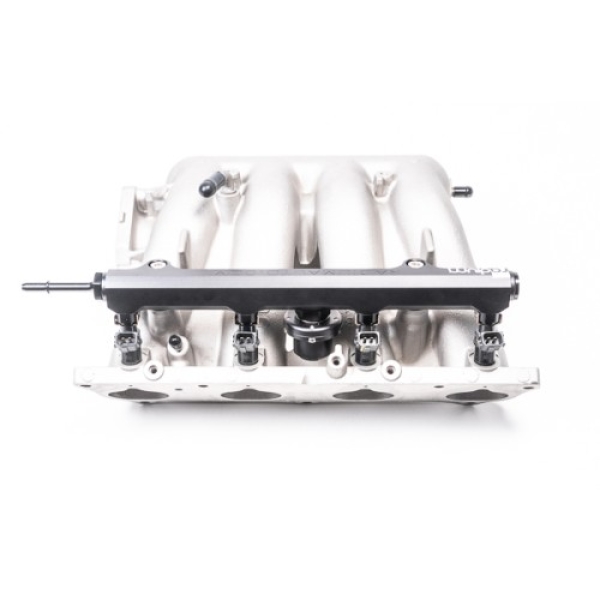

This kit allows easy connection of a factory feed line. The extended SAE quick connect fitting clears the OEM coolant hose (if equipped). Two plugs are included to plug the other two ports on the fuel rail. The example shown below depicts an optional fuel pulse damper 20-0177 FPD-XR in the center port.

Included:
-8AN ORB Male to 5/16" SAE Male Fitting
-8AN ORB Plug (x2)

FUEL PULSE DAMPER
Do I need a pulse damper? The opening and closing of the injectors creates pressure pulses in the fuel rail, which can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, pulse damper(s) should be used (especially with high flow injectors). The internal diaphragm will absorb oscillation pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and can often help an erratic surging idle.

If equipped, the OEM fuel pulse damper can be reused with the Radium 14-0278 adapter fitting.

The Honda pulse damper and Radium pulse dampers can be put on any of the fuel rail ports.
