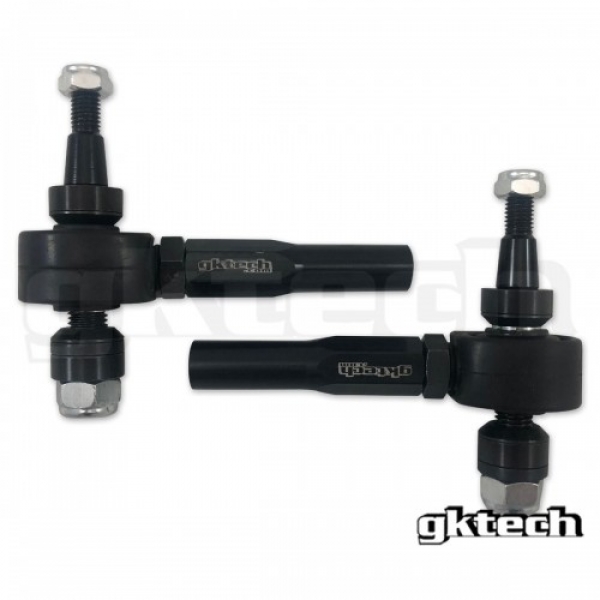

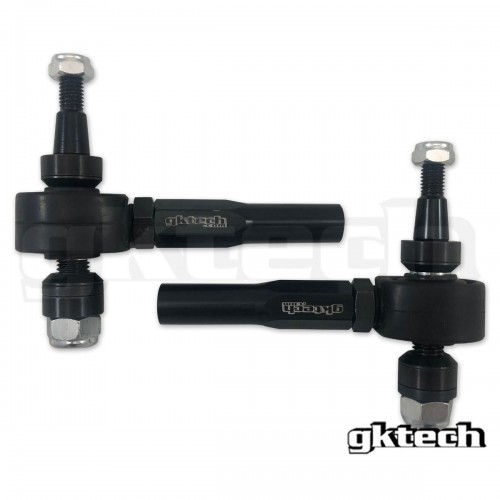

GKTECH HIGH MISALIGNMENT GTR/Z32 300ZX TIE ROD ENDS
The GKTECH high misalignment tie rods have 64 degrees of misalignment and also up to 25mm of bump steer correction built in.

Although these may look pretty similar to other tie rod ends on the market, don't be fooled as they are different (in a good way). Almost all tie rod ends on the market that use rose joints are NOT using high misalignment bearings and wear out in no time at all. OEM type tie rod ends provide around 60 degrees of misalignment and it is critical that around this level of misalignment is kept. Another common issue with most aftermarket style tie rod ends is that there is no protection from dust and dirt. We've developed dust boots specifically to suit the PCYML10T rose joints that we use in our kit. It's also pretty common for shanks to bend under high loads, our shanks have a tensile strength of 176ksi (class 12.9)

Bump steer correction is altered through the use of 5mm shims.

- Corrects bump steer up to 25mm
- Uses high quality PTFE lined 1 5/8" high misalignment rose joints
- Dust boots included

Vehicle Compatibility:
- Nissan Skyline R32 GTS-4
- Nissan Skyline R32 GTR
- Nissan Skyline R33 GTR
- Nissan Skyline R34 GTR
- Nissan 300ZX Z32
- Nissan Stagea

NOTE: These tie rod ends are only to suit OEM knuckles or knuckles that use an OEM taper.
