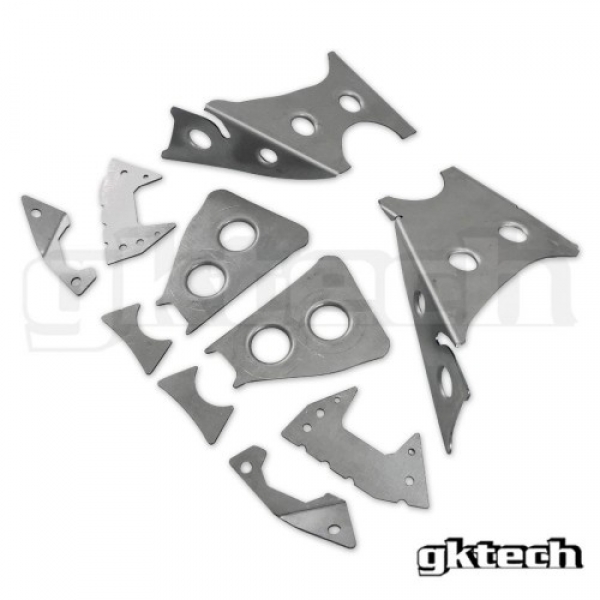

The GKTECH V2 S13/180sx/R32 subframe weld in reinforcement plates have been designed from a 3D scan with the addition of CMM data to help to reinforce your subframe where it needs it most. Laser cut, steel, and dimple died for strength these plates make reinforcement of the rear subframe a heap easier than attempting to do it yourself. The V2 reinforces the area around the rear diff more and the overall fit is better than our previous V1.
Vehicle Compatibility:
- Nissan S14 200sx
- Nissan S15 200sx
NOTE: Can be used on HICAS subframes however the rear diff/toe arm mounts would be discarded.
NOTE: Rear toe arm supports are to be discarded if the subframe was originally HICAS equipped.
FAQ'S
Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
However, we do sell a subframe weld in kit for S14/S15/R33/R34 as seen here: https://au.gktech.com/s14-s15-subframe-weld-in-reinforcement-plates
What's the advantage of using the GKTech weld in subframe kit?
Broken subframes are pretty common, especially in drift/motorsport applications. Just as people seam weld their cars, the subframe should not be forgotten. Remembering that it takes a heap of the stress under load. Also, a simple and effective mod while the subframe is out.
What modifications are required, is this hard to fit?
No modifications are required, simply just remove the subframe and weld the plates in.
Is there anything else needed for installation?
You will need a welder. In terms of the kit, it will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, provided you have welding experience. Welding in of the kit should take around 30 minutes.
