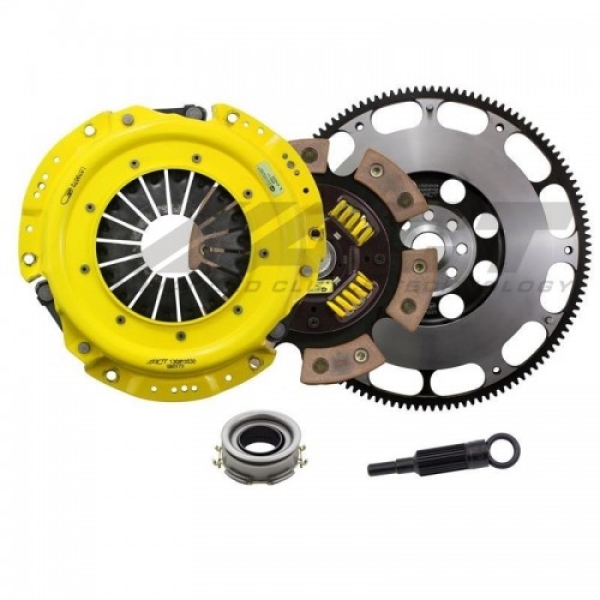

ACT Clutch Kit Subaru BRZ 2.0L 6spd 13-19 XT / Race Sprung 6 Pad

SB8-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle;
Life: Moderate friction life, extended by ACT's exclusive diaphragm design;
Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;
Recommended Use: Recommended for high horsepower street or race use;
ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

NOTE: Conversion kit-Includes ACT Prolite flywheel. Must use ACT Flywheel (included in kit).

Item Description
XT/Race Sprung 6 Pad
Product Weight (lbs.)
25.3
Torque Capacity (ft/lbs.)
449
Torque Capacity Over OE
166%
Disc Material
Ceramic
Friction Surface Diameter (Inches)
8.8
Friction Surface Diameter (mm)
224
Input Shaft Diameter (Inches)
1
Spline Count
24
Pad Quantity
6
Disc Type
Sprung Race Disc
Pressure Plate Type
Xtreme
Flywheel Included
600700
Flywheel Type
Prolite
Flywheel Tooth Quantity
124
Flywheel Mounting Hole Quantity
8
Warranty
12 Months
