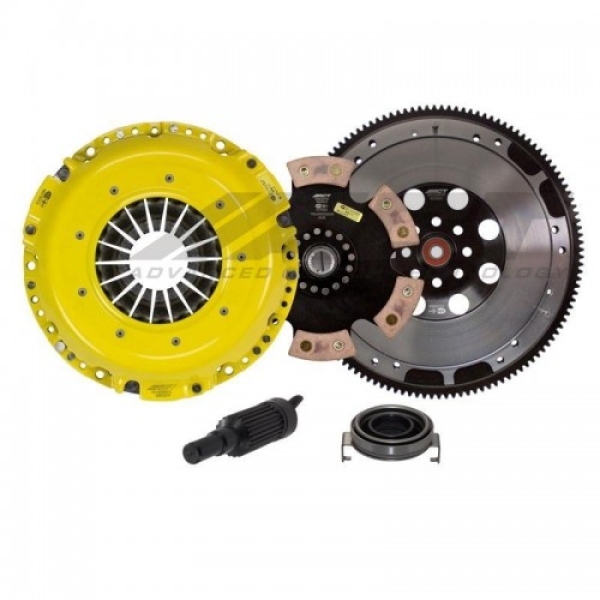

ACT Kupplung Kit Subaru Impreza WRX GDA 2.5L XT / Race Rigid 6 Pad

SB11-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle;
Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear;
Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;
Recommended Use: Recommended for race use only;
ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

NOTE: Conversion Kit. Replaces original 230mm clutch. Must use ACT flywheel (included in kit). smooth high RPM reliability;

Item Description
XT/Race Rigid 6 Pad
Product Weight (lbs.)
30.1
Torque Capacity (ft/lbs.)
681
Torque Capacity Over OE
111%
Disc Material
Ceramic
Friction Surface Diameter (Inches)
9.4
Friction Surface Diameter (mm)
240
Input Shaft Diameter (Inches)
1
Spline Count
24
Pad Quantity
6
Disc Type
Rigid Race Disc
Pressure Plate Type
Xtreme
Flywheel Included
600890
Flywheel Type
Streetlite
Flywheel Tooth Quantity
124
Flywheel Mounting Hole Quantity
8
Warranty
12 Months
