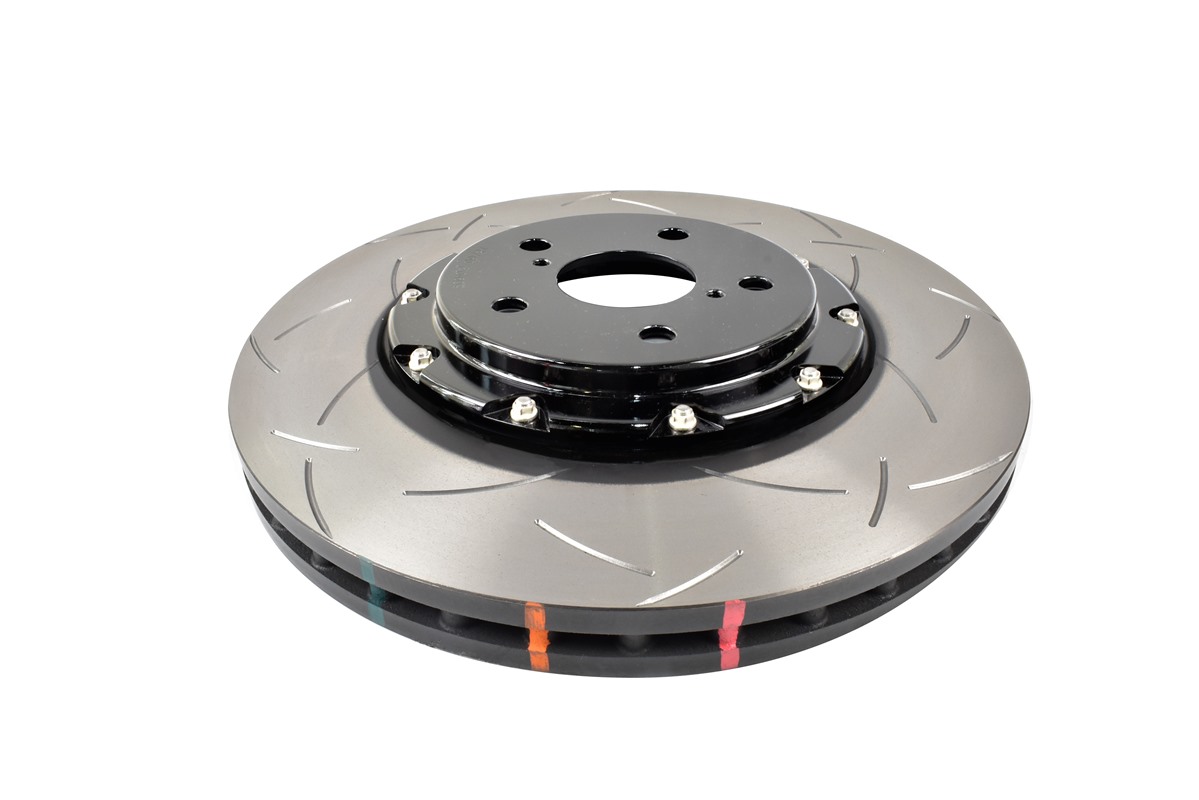

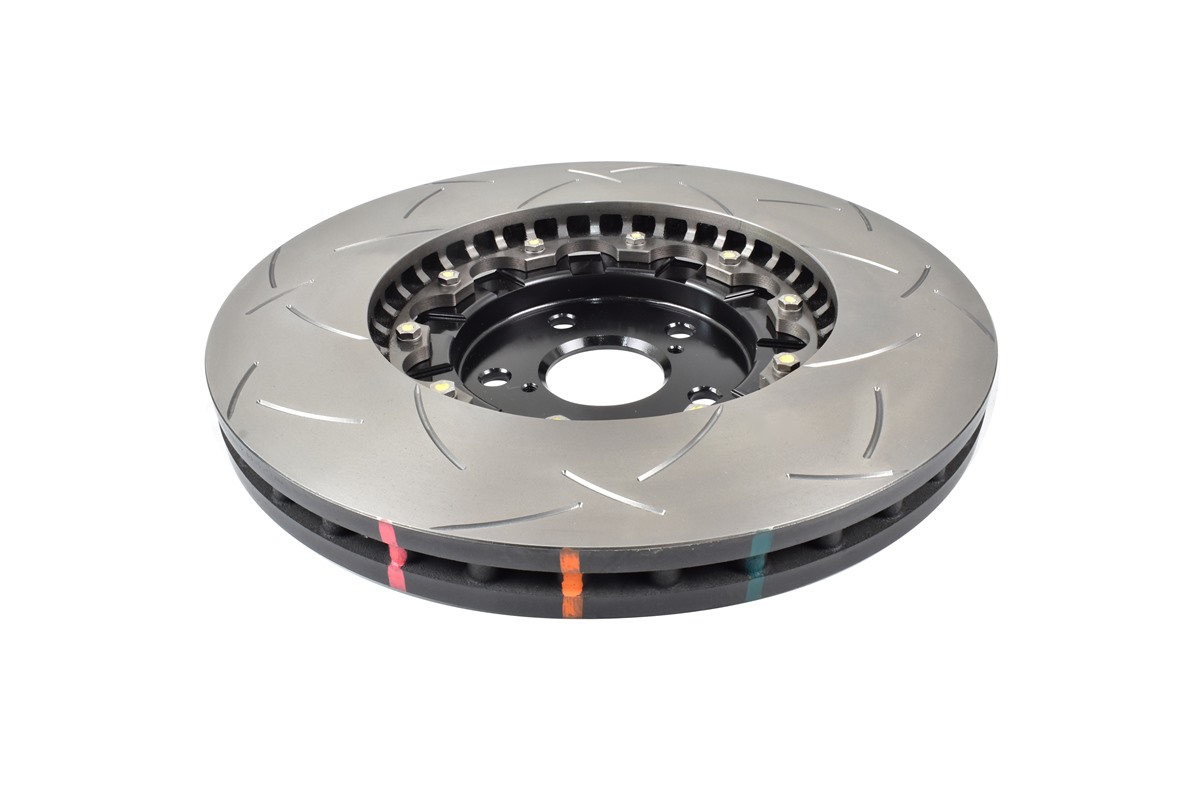

DBA Toyota Yaris GR 20+ Slotted Front Rotor T3 5000 Series
-
Diameter [mm] 356
-
Number of Holes 5
-
Inner Diameter [mm] 62
-
Minimum Thickness [mm] 26
-
Thickness [mm] 28
-
Height [mm] 49.5
-
Disc Vent Kangaroo Paw
-
Replacement Rotor DBA53922.1S
-
Weight [KG]: 10
QTY: 1 Brake Rotor (for Axle please order 2x)
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" |
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw –144 diamond and tear drop pillar ventilation system |
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron |
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling |
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring |
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas |
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
