Honda Civic FK8 Type R 17-21 HKS Front Mount Ladeluftkühler (NUR KÜHLER!)

HKS Intercooler Core Only for Honda Civic Type-R FK8 17-21
Best Layout with Best Core Size Designed for the Fastest FF CIVIC TYPE-R(FK8).

CONCEPT
The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
HKS intercooler is using a larger size intercooler to maintain cooling performance.
The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.

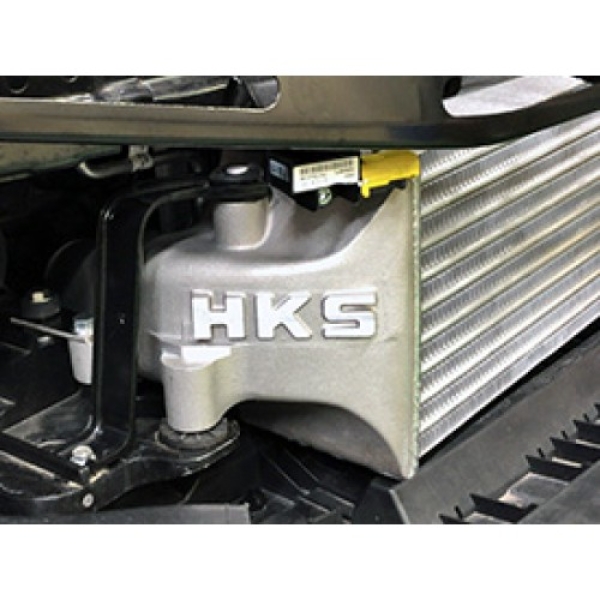

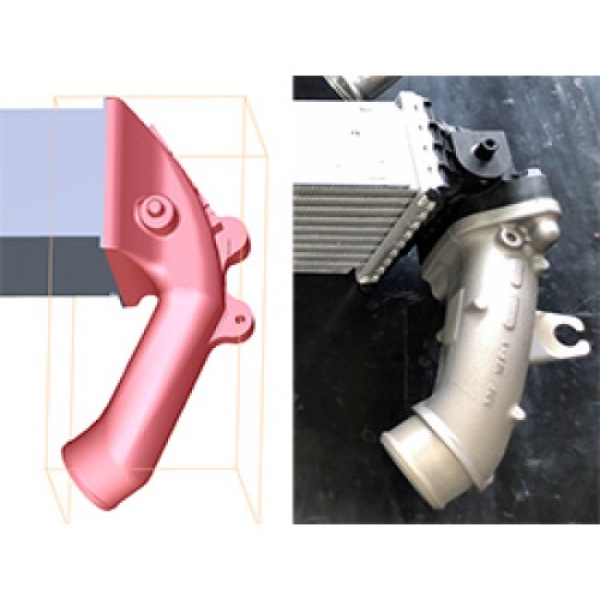

HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.

Features

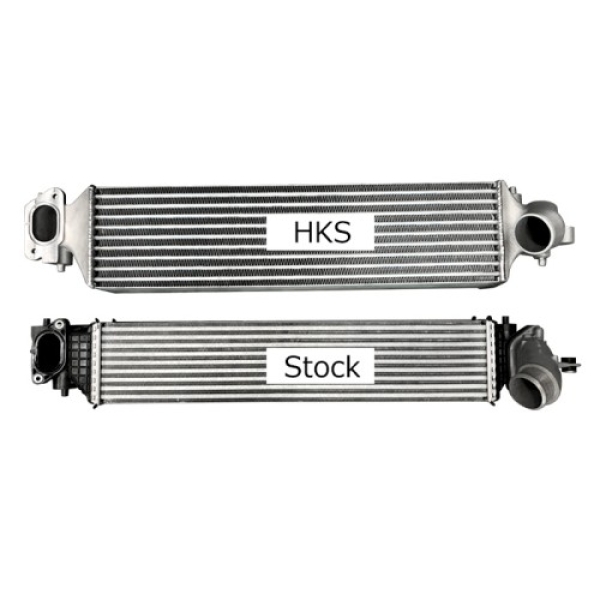

Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.
Core Size HKS：695mm x 178mm x 100mm
Stock：680mm x 143mm x 64mm

Minor modification of the fan shroud and rubber part that comes in contact with the core is required.

Vehicle CIVIC TYPE R
Model FK8
Engine K20C
Model Year 17-21

Remarks
Installation requires approx. 3.5 hours. ・I/C core only ・For a vehicle with 13002-AH001 PPK for FK8
