Honda Civic Type R 17-19 Perrin Performance Front Mount Ladeluftkühler

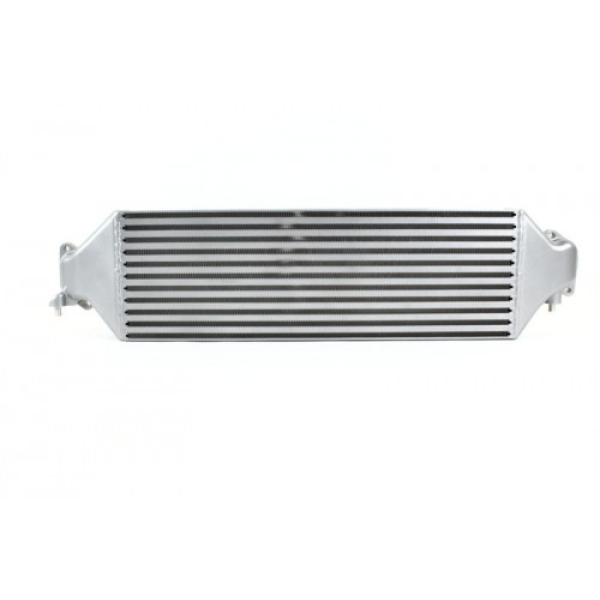

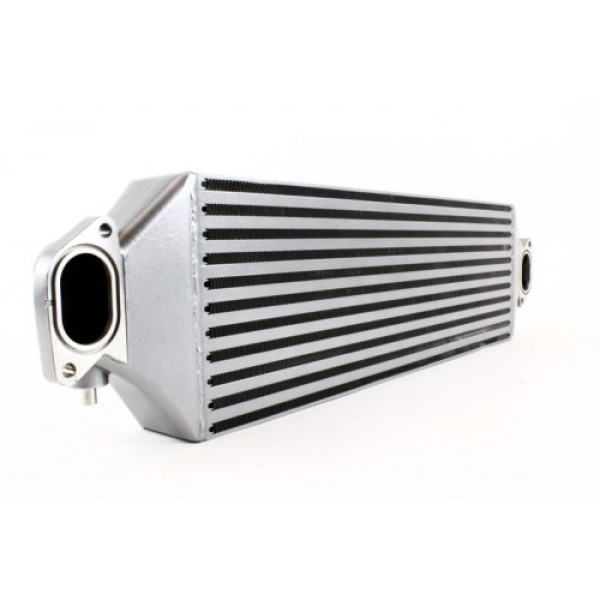

PERRIN PERFORMANCE FRONT MOUNT INTERCOOLER FOR 2017-2019 CIVIC TYPE R
Get the most out of your turbocharged Civic Type R! Add horsepower and a bold new look with a PERRIN Front Mount Intercooler.

HORSEPOWER
Rated at over 600WHP, the PERRIN Front Mount Intercooler adds 15-20ft-lbs of TQ and 15-20 WHP.

PERFORMANCE
The PERRIN Intercooler reduces intake charge temps by 40 degrees Fahrenheit. The colder air charge creates more power compared to the OEM intercooler. On the track, post intercooler, the charge temperature stays within 10-30 degrees above ambient temps, all while maintaining a pressure drop of less than 1psi.

DESIGN
The all-aluminum PERRIN Front Mount Intercooler is made as wide and tall as will fit with the OEM bumper beam, the 221 square inches of surface area fully fills the large opening in the stock bumper.

CORE CONSTRUCTION
Featuring an optimum core design with 3/8” bar and plate that has a 3/8” charge air and ambient air path, instead of the common 1/4” size. The PERRIN bar and plate core design is much more durable than tube and fin with the ability to withstand rocks and other debris.

SEALANT
Featuring deep gasket grooves to accommodate the large OEM O-rings which are much more durable than simple off the shelf O-rings.

AIRFLOW
By aligning the inlet and outlet to the center of the core the PERRIN Intercooler maintains smooth equal flow across the entire core without the need for internal baffles or dividers.

PRESSURE TESTING
PERRIN is one of the only intercooler manufactures who pressure tests every intercooler to 50 psi. Even the slightest leak can bleed turbo boost pressure out of the intercooler and cause your vehicle to lose power.

FINISH
Every PERRIN Intercooler has a bright silver powder coat finish protecting your intercooler from the elements and making it look awesome for years to come.

STENCIL
A free PERRIN logo intercooler stencil comes in every box. Simply peel, stick, and paint to easily add a PERRIN logo across the front of your intercooler.

BOLT ON POWER
This part will give you straight bolt on power. No specific tuning is required to run a PERRIN Intercooler.

SPECS
Core Length 26"
Core Width 3.15"
Core Height 8.5"
Total Volume 696 cu in
Surface Area 221 sq. in

IN THE BOX
(1) Intercooler
(1) Stencil
Warranty & Instructions

COMPATIBILITY
Note: Will only fit USDM and Canadian models
2017-2019 HONDA CIVIC TYPE R TOURING HATCHBACK
