HYDRAULIC HANDBRAKE SETUP
Das einfachste System zum Umrüsten der OEM Handbremse auf Hydraulisches Setup!
Weitere Teile um das Setup zu erweitern wie zb 2 Kolben Setup zum Schrauben oder Schweißen, extra Spurplatten, Trim Mount Inside/ Outside für Links/Rechts alles auf Anfrage.

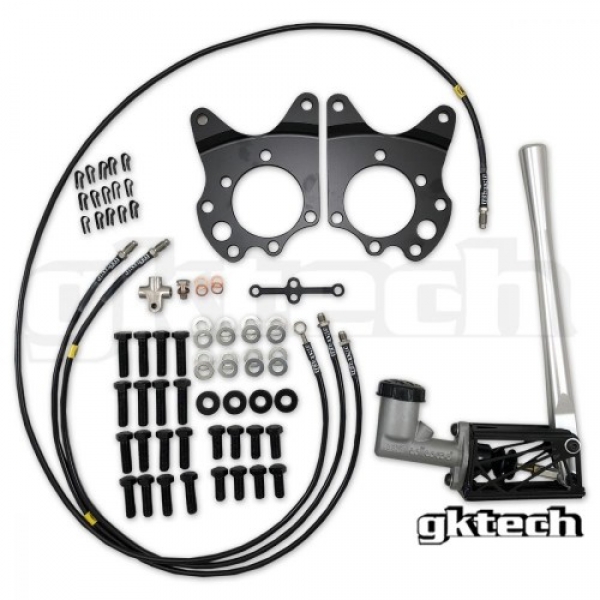

Dieses Setup -sofern nichts auf Anfrage geändert- ist wie folgt:
GKTech Handbrake Assembly : Hydraulic Handbrake
GKTech Handle Colour : Black
GKTech Master Cylinder : Wilwood Stand-alone ..
GKTech Dual caliper Brackets : Z33/Z34/V35/V36 Bolt..
GKTech Chassis specific handbrake base : INSIDE trim mount
GKTech Braided Lines : 350Z/370Z
GKTech Axle Spacers (Pair) : None

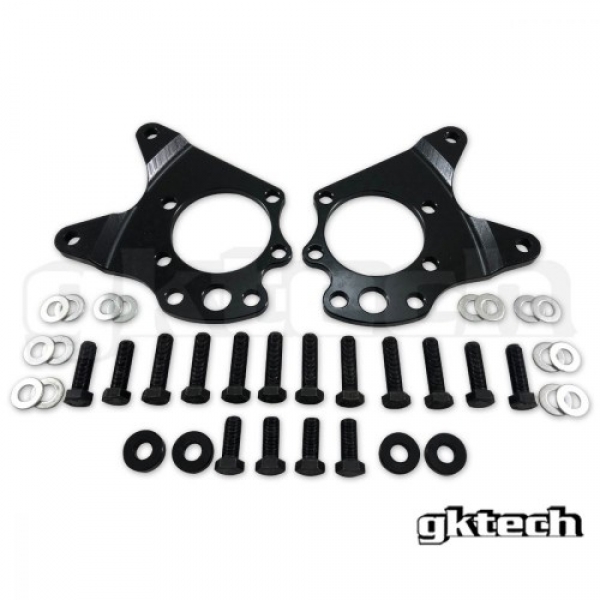

The GKTECH 350z dual caliper brackets feature CNC machined 6061-T6 aluminium and allow the use of either Brembo or non-Brembo calipers. Including Akebono.
The brackets only space the hub out 8mm and do not require any modifications to fit and also allow the use of the drum handbrake.

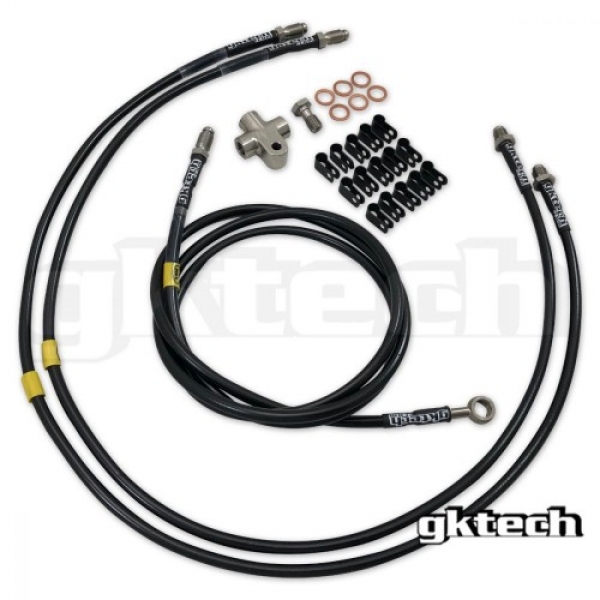

We also include the hydraulic handbrake lines that go from the Wilwood master cylinder to the rear calipers, everything you need for this kit to work is there, other than the calipers.

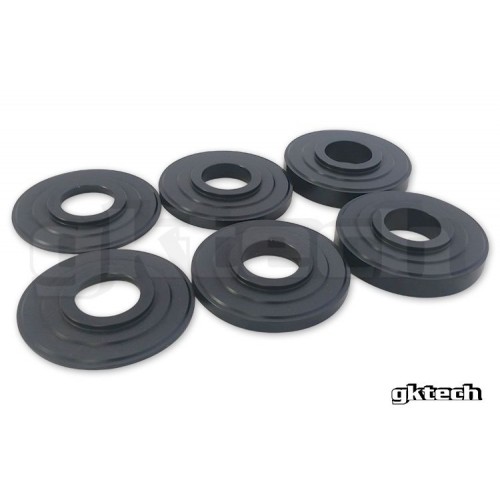

A few of the optional extras are axle spacers to counteract the spacing of the dual caliper bracket (8mm), this meaning the driveshaft is essentially being stretched that 8mm to compensate for the thickness of the plate. This can now be taken up with the use of an axle spacer (available in 5mm, 10mm or 15mm. 10mm is recommended).
Our optional chassis specific handbrake mounts make installation of the assembly a bolt in affair. More info on the brackets can be seen here: https://au.gktech.com/z33-350z-car-specific-handbrake-mount
Note that the additional handbrake base support brace will not fit V35/G35's
Lastly, we all know you want something fancy to pull on, so we have included our CNC machined aluminium handle which is now available in silver, black, neo chrome, blue, pink, purple, gold, orange or red.
Passend für:
- Nissan Z33 350z
- Nissan V35 Skyline
