GReddy Surge Tank / Intake Plenum
- For Toyota 2JZ-GTE
- Maximises air supply to the engine
- Compatible with high boost pressures
- 4 L collector tank capacity
- 90 mm throttle body
- Fuel rail for 14 mm top feed injectors
- Perfect for swaps and custom setups
- Made in Japan
- GReddy part no. : 13512303
GReddy Surge Tank Pro Kit for Toyota 2JZ-GTE Specifications

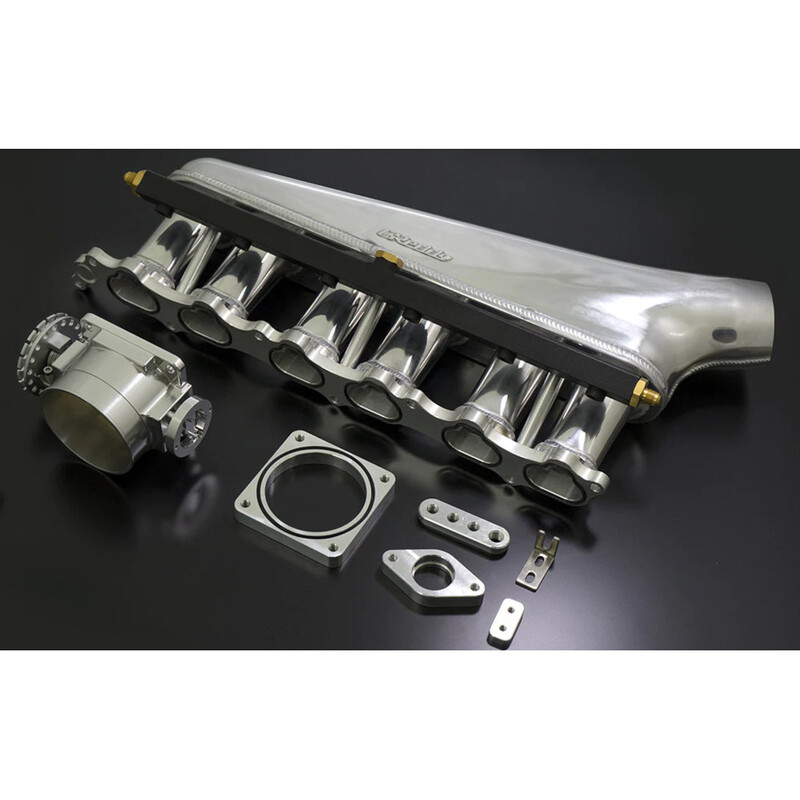

Designed specifically for custom builds powered by the Toyota 2JZ-GTE engine, this GReddy Pro kit offers the versatility to perfectly match the throttle body inlet angle and the air/vacuum ports of your engine bay. It features a 4-litre tank with a large 90mm throttle body, a top feed fuel rail and the necessary weld-on flanges.
Precision-welded and machined, the highly rigid plenum uses 3mm-thick aluminium to withstand high boost pressures and features six individual, internal velocity stacks. Carefully designed primary runners also help increase airflow to maximise engine intake efficiency.
Key Features
- 4-litre capacity collector tank (normal ratio 200%)
- Tuned internal velocity stacks on each runner
- Primary runner length 130mm, OD 14.0mm, ID 13.0mm

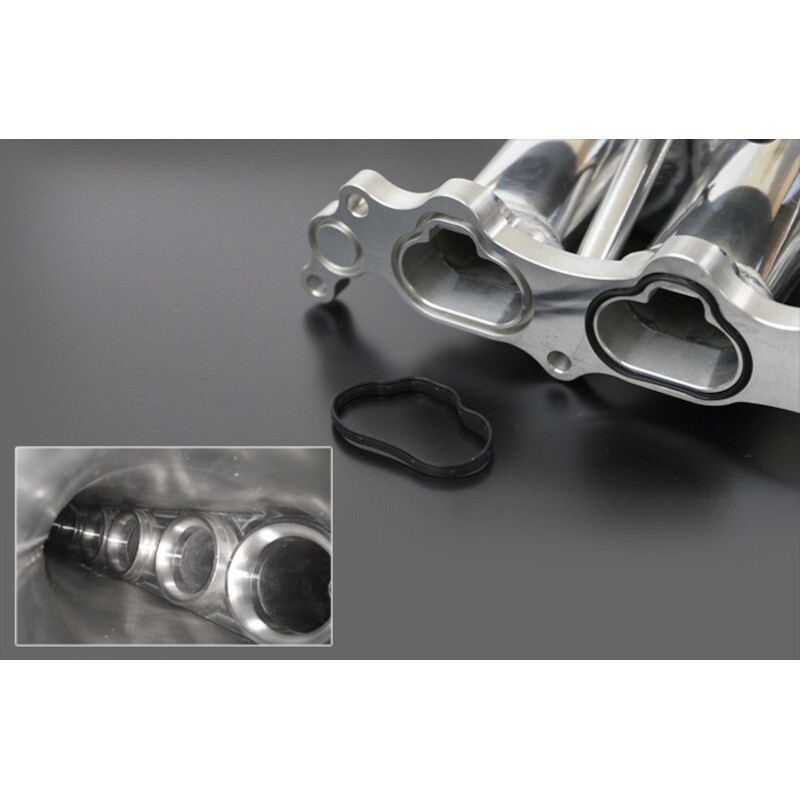

- Specific O-rings for maximum manifold/head sealing

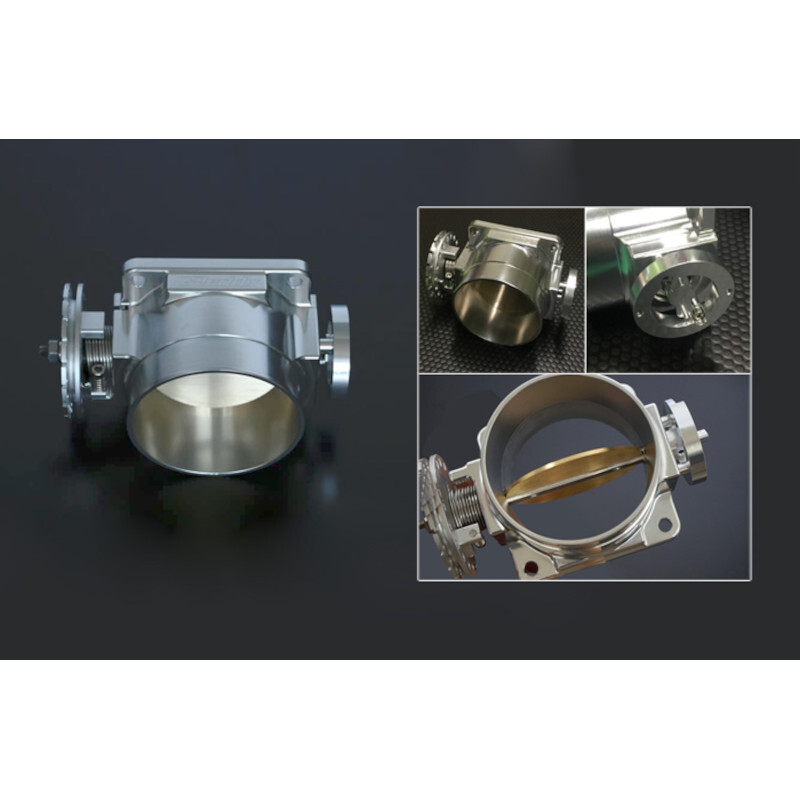

- Throttle-body hose diameter 100mm, internal butterfly diameter 90mm with low-profile throttle shaft
- Fuel rail for 14mm top feed injectors (e.g. compatible with Nissan R35 VR38DETT factory injectors)
- Compatible with OEM factory ICV (Idler Control Valve) and TPS (Throttle Position Sensor)
Please note : Welding required to attach throttle body flange, throttle cable mount and air port flanges.

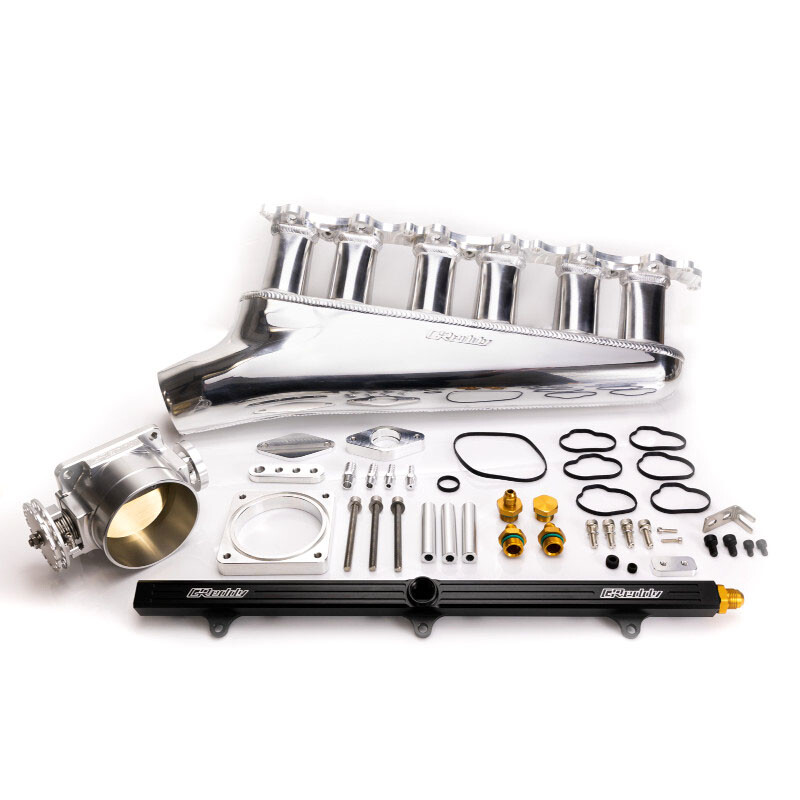

Kit Contents
- Surge tank
- Throttle body
- Throttle flange
- Fuel delivery tube and mounts
