fördert Benzinvolumen für bis zu 2000ps Motorleistung
für jede Art von Sprit geeignet - auch E85
35-80 psi (2.4-5.5 bar) base pressure adjustment
1:1 manifold pressure ratio with no load losses
2x dash 8 / AN8 ports (1 inlet, 1 outlet)
1/8″ NPT port for a pressure gauge
Aluminum construction
Stainless steel internals with MILSPEC diaphragm
Turbosmart Fuel Pressure Regulator Specifications

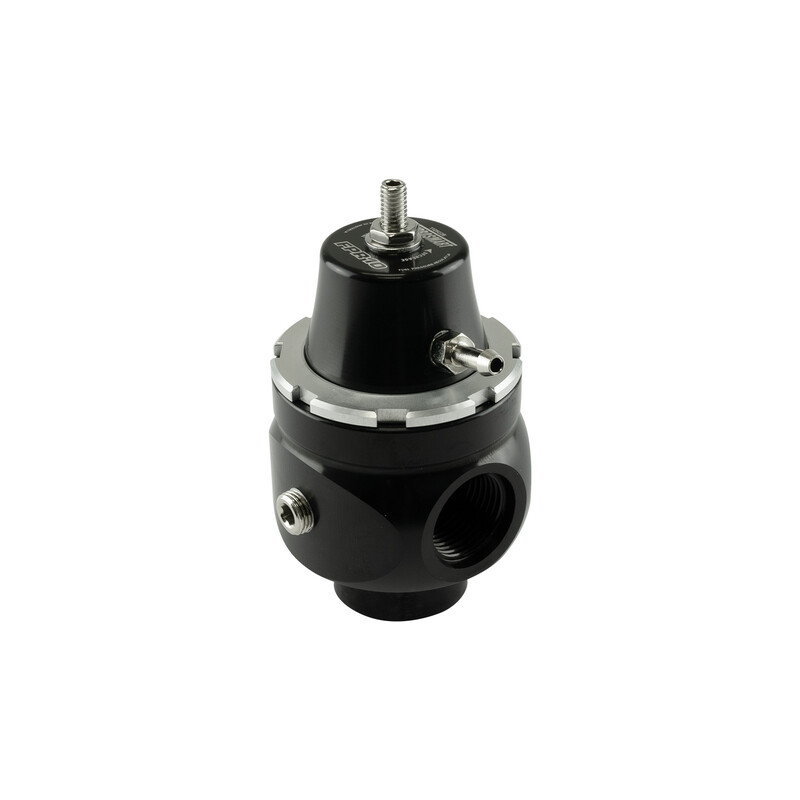

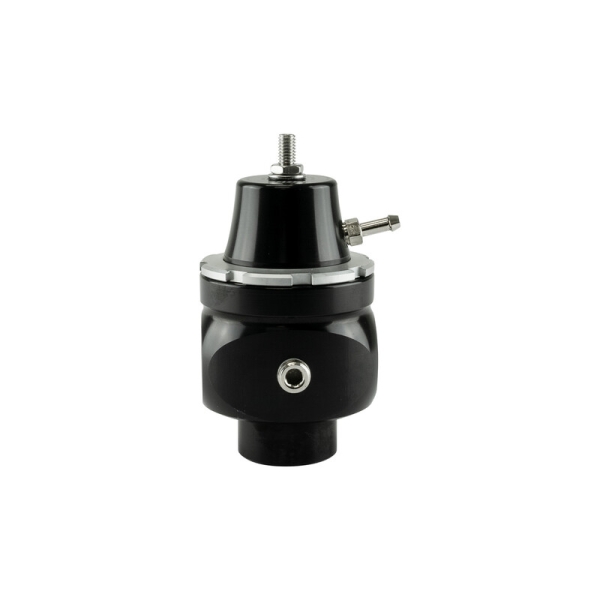

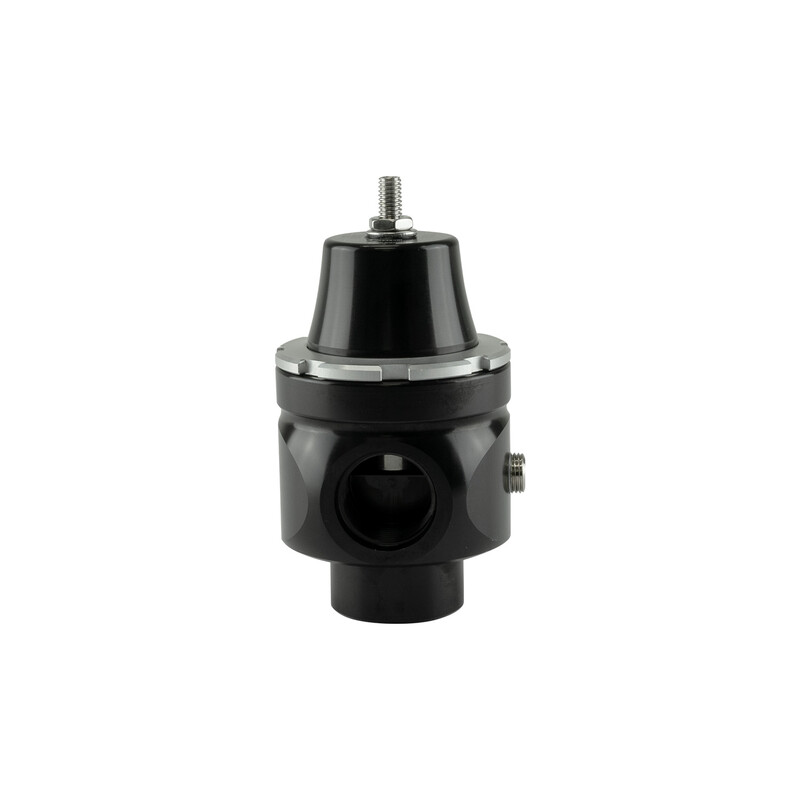

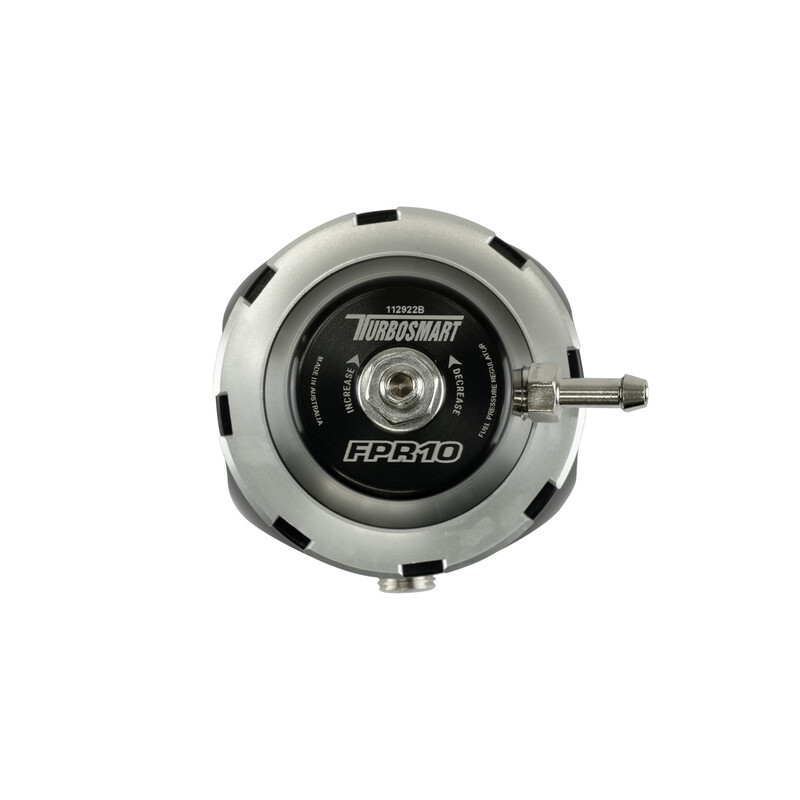

The Turbosmart universal fuel pressure regulator is also designed for vehicles producing very high fuel requirements. Constructed of lightweight yet durable billet aluminum, it features stainless steel internals and a military-grade diaphragm for excellent strength and reliability, even under heavy use.
This regulator is compatible with all fuel types, including E85, and offers pressure adjustments over a range of 35 to 80 psi (2.4 to 5.5 bar) for an ideal setup at a ratio of 1:1 with manifold pressure (at base ratio). It features an additional 1/8" NPT port for pressure gauge connection. This product is very robust and can withstand temperatures from -30°C to 200°C.

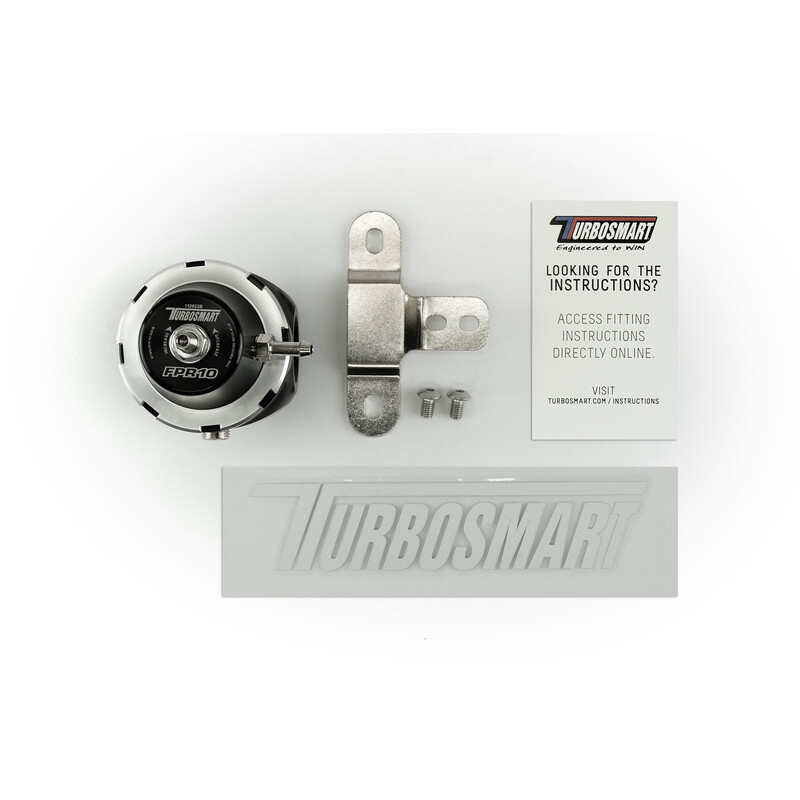

This regulator is manufactured, assembled and validated in-house at Turbosmart in Australia and comes with a mounting bracket.
